FOX SUSPENSION Steel Spring

OUR PRICE £46.95

Specifications

Enquiry

Reviews

Description

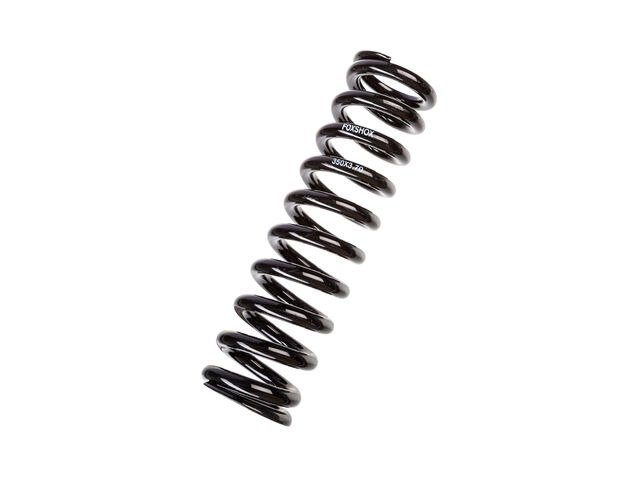

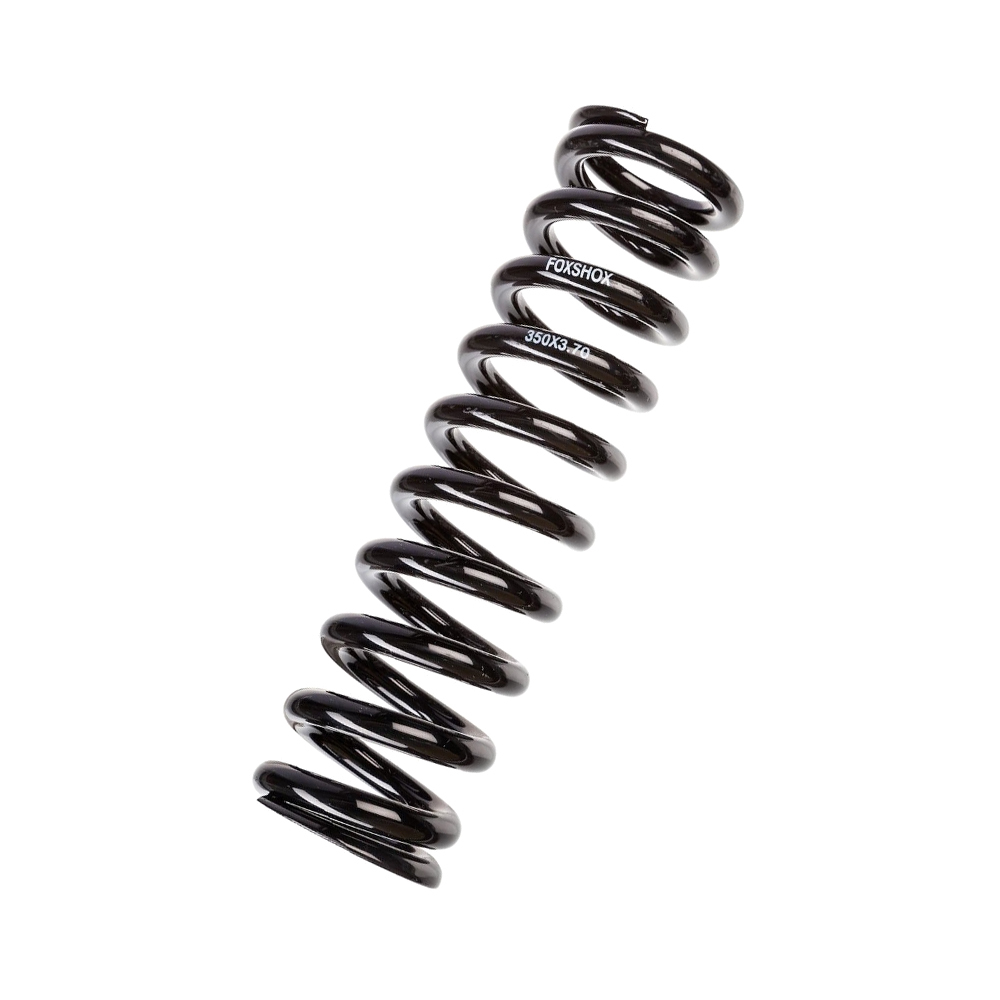

Genuine Fox steel spring for all Fox coil shocks.

All standard steel springs are black and are marked with their spring rate in lbs/in (in 50 lb increments) and the total travel of the spring itself. Standard black springs should only be paired with shocks having less travel than the travel marked on the spring itself.

Part	Description	Where used
2.3in/58mm-2.55in/65mm Travel Springs
039-03-011	Spring: [4.285 TLG X 1.385 ID X 250 lbs/in 2.500 Travel] Black	7.875inx2.25in 185mm(T)x50mm 185mm(T)x52.5mm 185mm(T)x55mm 210mmx50mm 210mmx52.5mm 210mmx55mm
039-03-012	Spring: [4.344 TLG X 1.385 ID X 300 lbs/in 2.500 Travel] Black
039-03-013	Spring: [4.381 TLG X 1.385 ID X 350 lbs/in 2.450 Travel] Black
039-03-014	Spring: [4.675 TLG X 1.385 ID X 400 lbs/in 2.450 Travel] Black
039-03-015	Spring: [4.723 TLG X 1.385 ID X 450 lbs/in 2.370 Travel] Black
039-03-016	Spring: [4.733 TLG X 1.385 ID X 500 lbs/in 2.350 Travel] Black
039-03-017	Spring: [4.776 TLG X 1.385 ID X 550 lbs/in 2.350 Travel] Black
039-03-018	Spring: [4.830 TLG X 1.385 ID X 600 lbs/in 2.350 Travel] Black
039-03-006	Spring: [6.126 TLG X 1.385 ID X 600 lbs/in 2.550 Travel] Black
039-03-019	Spring: [4.954 TLG X 1.385 ID X 650 lbs/in 2.300 Travel] Black
039-03-100	Spring: [5.200 TLG X 1.375 ID X 700 lbs/in 2.300 Travel] Black
039-03-009	Spring: [5.701 TLG X 1.385 ID X 700 lbs/in 2.550 Travel] Black
039-03-101	Spring: [5.280 TLG X 1.375 ID X 800 lbs/in 2.300 Travel] Black
2.8in/71mm Travel Springs
039-03-022	Spring: [4.924 TLG X 1.385 ID X 250 lbs/in 2.800 Travel] Black	8.50inx2.50in 205mm(T)x60mm 205mm(T)x62.5mm 205mm(T)x65mm 230mmx60mm 230mmx62.5mm 230mmx65mm
039-03-001	Spring: [5.799 TLG X 1.385 ID X 350 lbs/in 2.800 Travel] Black
039-03-002	Spring: [5.459 TLG X 1.385 ID X 400 lbs/in 2.800 Travel] Black
039-03-003	Spring: [5.409 TLG X 1.385 ID X 450 lbs/in 2.800 Travel] Black
039-03-004	Spring: [5.728 TLG X 1.385 ID X 500 lbs/in 2.800 Travel] Black
039-03-005	Spring: [5.949 TLG X 1.385 ID X 550 lbs/in 2.800 Travel] Black
039-00-600	Spring: [5.750 TLG X 1.385 ID X 550 lbs/in 2.800 Travel] Black
039-03-007	Spring: [6.382 TLG X 1.385 ID X 600 lbs/in 2.800 Travel] Black
039-00-601	Spring: [5.750 TLG X 1.385 ID X 600 lbs/in 2.800 Travel] Black
039-03-008	Spring: [6.150 TLG X 1.385 ID X 650 lbs/in 2.800 Travel] Black
039-03-010	Spring: [6.402 TLG X 1.385 ID X 700 lbs/in 2.800 Travel] Black
3.19in/81mm-3.25in/83mm Travel Springs
039-09-010	Spring: [6.468 TLG X 1.385 ID X 250 lbs/in 3.25 Travel] Black	8.75inx2.75in 9.50inx3.00in 225mm(T)x70mm 225mm(T)x72.5mm 225mm(T)x75mm 250mmx70mm 250mmx72.5mm 250mmx75mm
039-03-000	Spring: [6.126 TLG X 1.385 ID X 300 lbs/in 3.240 Travel] Black
039-09-000	Spring: [6.476 TLG X 1.385 ID X 300 lbs/in 3.25 Travel] Black
039-09-001	Spring: [6.689 TLG X 1.39 ID X 350 lbs/in 3.25 Travel] Black
039-09-002	Spring: [6.634 TLG X 1.385 ID X 400 lbs/in 3.25 Travel] Black
039-09-003	Spring: [6.760 TLG X 1.385 ID X 450 lbs/in 3.25 Travel] Black
039-09-004	Spring: [6.909 TLG X 1.385 ID X 500 lbs/in 3.25 Travel] Black
039-09-005	Spring: [6.929 TLG X 1.385 ID X 550 lbs/in 3.25 Travel] Black
039-09-006	Spring: [7.114 TLG X 1.385 ID X 600 lbs/in 3.25 Travel] Black
039-09-007	Spring: [6.815 TLG X 1.385 ID X 650 lbs/in 3.19 Travel] Black
039-09-008	Spring: [7.130 TLG X 1.385 ID X 700 lbs/in 3.19 Travel] Black
3.64in/92mm-3.85in/98mm Travel Springs
039-12-000	Spring: (T) [6.800 TLG X 1.385 ID X 150 lb/in X 3.85 Travel] Black	10.5inx3.5in
039-12-001	Spring: (T) [7.000 TLG X 1.385 ID X 200 lb/in X 3.80 Travel] Black
039-12-008	Spring: (T) [7.000 TLG X 1.385 ID X 225 lb/in X 3.80 Travel] Black
039-12-002	Spring: (T) [7.200 TLG X 1.385 ID X 250 lb/in X 3.75 Travel] Black
039-12-009	Spring: (T) [7.500 TLG X 1.385 ID X 275 lb/in X 3.75 Travel] Black
039-12-003	Spring: (T) [7.750 TLG X 1.385 ID X 300 lb/in X 3.70 Travel] Black
039-12-010	Spring: (T) [7.7550 TLG X 1.385 ID X 325 lb/in X 3.70 Travel] Black
039-12-004	Spring: (T) [7.750 TLG X 1.385 ID X 350 lb/in X 3.70 Travel] Black
039-12-005	Spring: (T) [7.750 TLG X 1.385 ID X 400 lb/in X 3.65 Travel] Black
039-12-006	Spring: (T) [8.100 TLG X 1.385 ID X 450 lb/in X 3.65 Travel] Black
039-12-007	Spring: (T) [8.250 TLG X 1.385 ID X 500 lb/in X 3.64 Travel] Black

Pricing and availablility may vary. Please contact FOX directly for additional information.

*NOTE: Spring TLG (Total Length) listed is an average of a sample of springs. Your springs TLG may vary beyond the dimensions listed above.

WARNING: Tighten the preload adjuster just until the spring no longer moves then preload no more than 2 full turns. Preloading the spring more than 2 full turns may cause the spring to coil bind when the shock is bottomed out. This can cause damage to the shock which could lead to a loss of control resulting in SERIOUS INJURY OR DEATH.

As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
